Solar Water Heater Installation: A Step-by-Step Guide for Homeowners

With the growing demand for renewable energy solutions, solar water heaters have emerged as a popular and eco-friendly option for homeowners. We learned this the hard way when dealing with complex water heater issues… By harnessing the power of the sun, these systems can significantly reduce your energy costs and carbon footprint. If you’re considering a solar water heater for your home, this comprehensive guide will walk you through the step-by-step installation process, ensuring a smooth and successful project.

Now, this might seem counterintuitive when dealing with water heaters…

Water Heater Types and Principles

Before diving into the installation process, it’s essential to understand the different types of water heaters available and their underlying principles. The three main categories are:

Conventional Tank Water Heaters: These are the most common types, storing a large volume of hot water in a tank. They can be powered by electricity, natural gas, or propane.

Tankless (Demand) Water Heaters: Also known as on-demand heaters, these units heat water only when needed, providing a continuous supply of hot water while being more energy-efficient.

Solar Water Heater Systems: These utilize the sun’s energy to heat water, making them a highly sustainable and cost-effective option for homeowners.

In this guide, we’ll focus specifically on the installation of solar water heater systems, exploring the key considerations and steps involved.

Site Evaluation and Orientation

The first step in installing a solar water heater is to evaluate your property and determine the optimal placement for the solar collectors. Here are the key factors to consider:

Solar Exposure: Assess the available roof space or ground area that receives the most direct sunlight throughout the day. This will double-check that the solar collectors can efficiently capture the sun’s energy.

Orientation: Ideally, the solar collectors should be oriented towards the south (in the northern hemisphere) or north (in the southern hemisphere) to maximize the sun’s exposure.

Tilt Angle: The tilt angle of the solar collectors should be adjusted to match the latitude of your location, typically between 30-60 degrees, to optimize solar absorption.

Shading: Examine the surrounding structures, trees, or other objects that could cast shadows on the solar collectors, as this can significantly impact their performance.

Once you’ve evaluated your site and determined the best placement, you can proceed with the installation process.

Collector Mounting and Positioning

The next step is to properly mount and position the solar collectors. This involves the following:

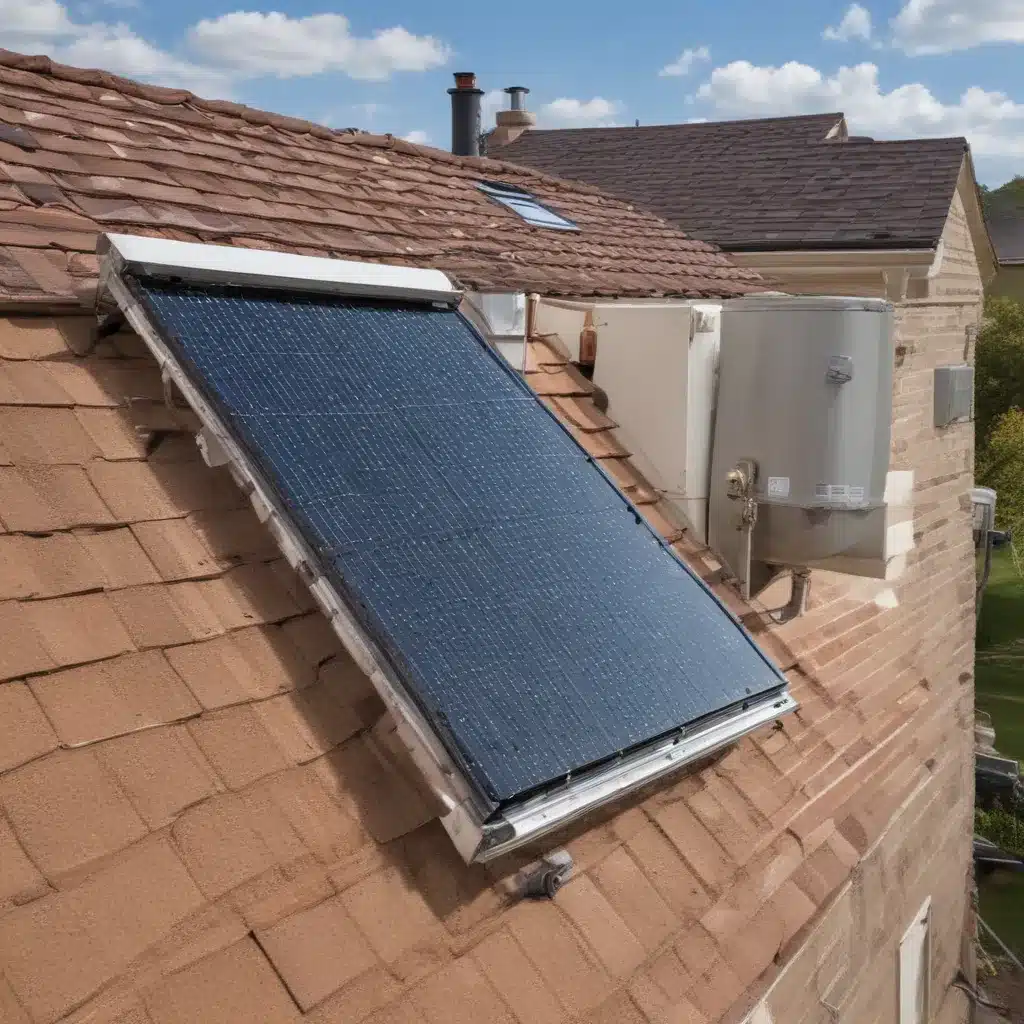

Roof-Mounted Collectors: If installing the collectors on your roof, double-check that the roof structure can support the additional weight. Use appropriate mounting hardware and follow the manufacturer’s instructions for securing the collectors.

Ground-Mounted Collectors: For ground-mounted systems, you’ll need to construct a sturdy, level foundation to support the collectors. This may involve excavation, concrete pouring, and the installation of a support frame.

Tilt and Orientation: Adjust the tilt and orientation of the collectors to align with the optimal angle for your location, as determined during the site evaluation.

Shading Avoidance: Carefully position the collectors to minimize the risk of shading from nearby trees, buildings, or other obstructions.

Plumbing Integration

Integrating the solar water heater system with your home’s plumbing is a critical step. This includes:

Cold Water Supply: Connect the cold water inlet of the solar storage tank to the main water supply line entering your home.

Hot Water Delivery: Attach the hot water outlet from the solar storage tank to your home’s hot water distribution system, ensuring proper insulation to minimize heat loss.

Expansion Tank: Install an expansion tank to accommodate the increased volume of hot water and prevent pressure build-up.

Backup Heating: Incorporate a backup heating system, such as a traditional water heater or boiler, to provide supplementary hot water during periods of low solar energy production.

Leak Prevention: Carefully inspect all plumbing connections and fittings to identify and address any potential leak points.

Electrical Requirements

Depending on the type of solar water heater system, there may be electrical components that require proper installation and connection. This could include:

Power Source: Determine the appropriate power source for your solar water heater, which may be a dedicated solar photovoltaic (PV) system, the main electrical grid, or a combination of both.

Wiring and Connections: double-check that all electrical wiring and connections are made in accordance with local building codes and safety standards. This may involve the assistance of a licensed electrician.

Grounding and Bonding: Proper grounding and bonding of the electrical components are crucial for safety and system performance.

Control Systems: Some solar water heater systems may include advanced control systems, such as temperature sensors and monitoring devices, that require specialized electrical integration.

Regulatory Compliance

Before starting your solar water heater installation, it’s important to familiarize yourself with the relevant regulations and requirements in your area. This may include:

Building Permits: In most cases, you’ll need to obtain the necessary building permits from your local authorities before commencing the installation process.

Energy Efficiency Standards: double-check that your solar water heater system meets or exceeds any applicable energy efficiency standards or guidelines, such as those set by the ENERGY STAR® program.

Incentives and Rebates: Depending on your location, there may be various incentives, tax credits, or rebates available for homeowners who install solar water heaters. Be sure to research and take advantage of any applicable programs.

Maintenance and Troubleshooting

Once your solar water heater system is installed, it’s essential to maintain it properly to double-check that long-term performance and efficiency. This includes:

Periodic Inspections: Regularly check the solar collectors, plumbing connections, and electrical components for any signs of wear, damage, or deterioration.

Cleaning and Flushing: Keep the solar collectors free of debris and dirt buildup by periodically cleaning them. Additionally, flush the storage tank to remove any sediment or mineral buildup.

Anode Rod Replacement: Replace the anode rod in the storage tank every few years to prevent corrosion and extend the system’s lifespan.

Troubleshooting and Repairs: If you encounter any issues, such as reduced hot water output or system malfunctions, refer to the manufacturer’s instructions or consult a professional for guidance on troubleshooting and making necessary repairs.

By following these step-by-step guidelines, you can successfully install a solar water heater system in your home, reap the benefits of renewable energy, and enjoy a reliable and efficient hot water supply for years to come. For more information and resources on water heater solutions, be sure to visit WaterHeaterPick.com.
